Which container is suitable for HPLC waste disposal? A practical guide to waste profiles, materials, handling and safety
HPLC laboratories generate solvent waste every day, which must be collected, stored and disposed of safely. Choosing the right HPLC waste container has a direct impact on occupational safety, solvent vapours in the laboratory, day-to-day handling, disposal processes and compliance with technical, operational and regulatory requirements.
Selecting a container is not simply a matter of volume. Depending on its design, material, thread and disposal concept, a 5-litre container may be suitable to very different degrees. At the same time, larger containers may appear economically attractive but can raise new questions in daily laboratory operations: Who replaces the container? How is it transported? Is it handed over in full as the waste container, or is the waste transferred internally? Does electrical conductivity need to be taken into account? And which Safety Waste Cap is suitable for the container and the application?
Quick check: Clarify these 10 points in advance
- Determine the solvent mixtures
- Record the volume of waste generated
- Check the unattended operating time
- Define the disposal concept
- Select the container material
- Determine the container volume
- Check the installation space and geometry
- Select the Safety Waste Cap
- Define the fill-level monitoring method
- Check UN approval for transport and handover
The following sections explain step by step how these points can be systematically assessed when selecting a suitable HPLC waste container.

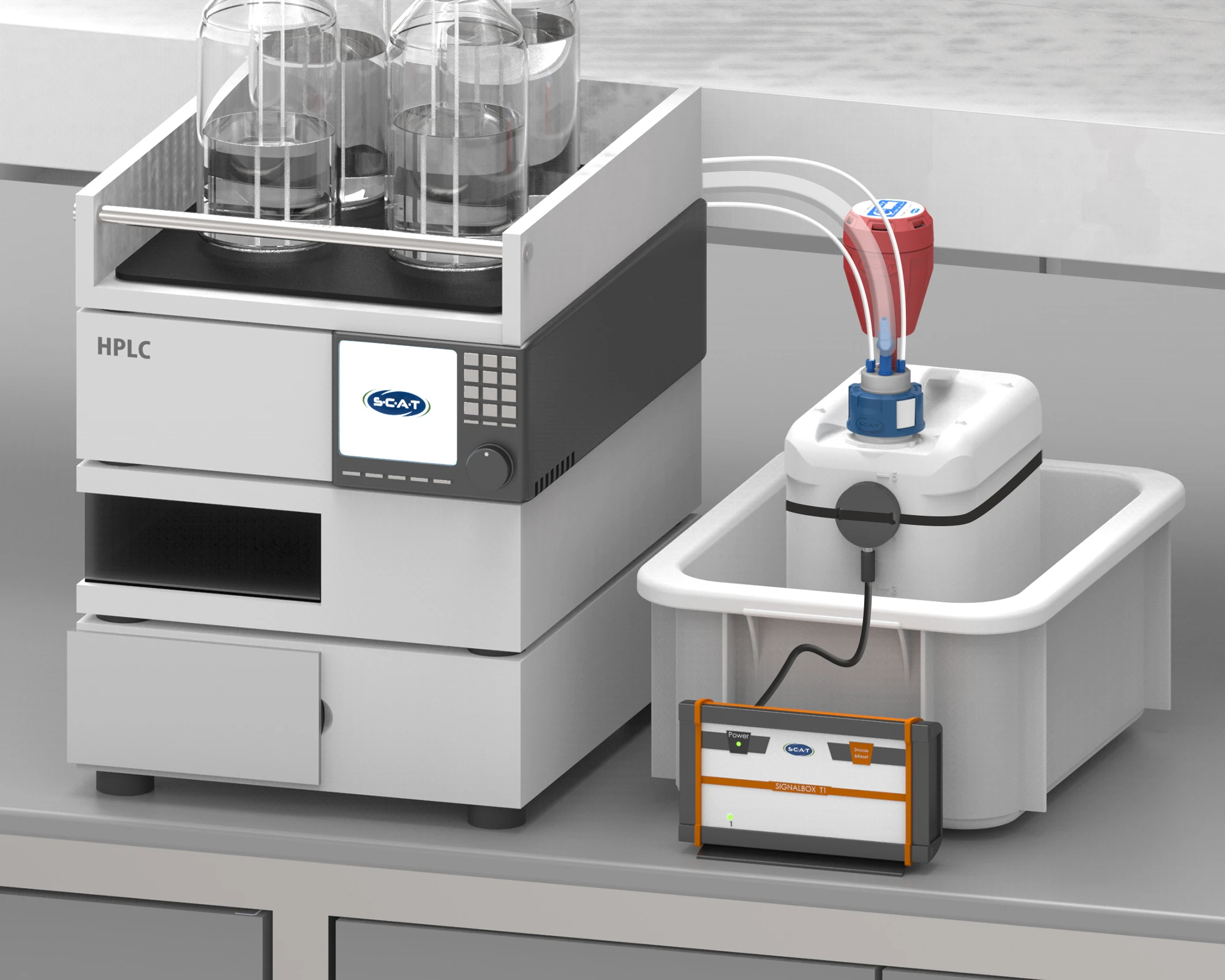

Figure 1: Solvent collection container in the laboratory with SCAT activated carbon filter.
1. Define the waste profile: Which solvents, what volumes and what disposal interval?
The starting point when selecting a waste container is not the container itself, but the waste stream. The first step is to identify the HPLC waste actually generated in the laboratory. This includes the type and composition of the solvents, such as water/solvent mixtures, acetonitrile, methanol, buffer components or particularly volatile or flammable substances.
Equally important is the volume of waste generated. This should always be assessed over a defined period of time: per hour, per day, per week or per disposal cycle. A laboratory generating five litres of solvent waste per week requires a different container concept from one producing several litres per day.
Peak waste volumes and unattended operating periods should also be taken into account. If several HPLC systems are operated simultaneously or particularly large volumes of waste are generated during specific analyses, a container may become full much sooner than expected during routine operation. Continuous 24-hour operation, such as overnight or throughout the weekend, is particularly critical. In these situations, the waste volume over time, container capacity, fill level monitoring and replacement interval must be carefully coordinated to prevent overfilling and minimise the risk of leaks.
Practical conclusion: The appropriate HPLC waste container can only be selected once the type of waste, waste volume, peak volumes and disposal interval have been clearly defined.
2. Define the waste disposal concept: What happens to the filled container?
An often overlooked aspect is what happens to the container once it has been filled. When selecting a waste container, it is not only important to consider the type of waste generated, but also how the filled container will be integrated into the subsequent waste disposal process.
In many laboratories, smaller HDPE containers, for example with a capacity of 5 litres, are sealed, labelled and handed over as complete waste packages once they have been filled. Depending on the organisation of the laboratory, the container may be collected directly from the laboratory or transported internally to a central waste collection point. There, the containers are stored temporarily until they are collected for further internal or external disposal.
In practice, this is often a simple and cost-effective solution because no additional transfer of waste is required. However, the transport route, container weight, labelling, temporary storage and handover must all be compatible with the site's safety procedures and waste disposal concept.
For higher-value or more specialised containers, such as conductive HDPE-EL containers, a waste transfer concept may be more economical. In this approach, the waste is transferred into a suitable collection container, allowing the original container to be reused. In such cases, it is important to define in advance where and how the transfer will take place: within the HPLC laboratory, at a central waste collection point or in a dedicated waste handling area.
Waste transfer operations introduce additional requirements. These include suitable transfer facilities, safe handling procedures, appropriate personal protective equipment, grounding or equipotential bonding for conductive systems, adequate ventilation, correct labelling, defined transport routes and clearly assigned responsibilities.
Practical conclusion: The selected waste container must match the overall waste disposal process. Small HDPE containers are often handed over as complete waste packages, whereas higher-value specialist containers may form part of a reuse or waste transfer concept. The most suitable solution depends on the waste volume, container type, internal organisation, safety requirements and the waste disposal contractor's concept.
3. Review safety requirements and the applicable regulatory framework
HPLC solvent waste may be classified as flammable, hazardous to health, irritant or otherwise hazardous. For this reason, the applicable safety requirements should be assessed before selecting a waste container.
This includes considerations such as fire and explosion protection, electrostatic charging, storage conditions, ventilation, installation location, transport routes and internal labelling requirements. It is important to evaluate not only the container itself but the entire system, including the waste stream, container, installation location, Safety Waste Cap, activated carbon filter, tubing connections, fill level monitoring and waste disposal process. Whether the container is placed openly at the HPLC workstation, beneath a laboratory bench, inside a safety cabinet or within a laboratory fume hood also makes a significant difference.
Depending on the country and the specific application, different regulations, technical standards and site-specific safety requirements may apply. In Germany, for example, the Technical Rules for Hazardous Substances (TRGS) play an important role. Although the TRGS are not statutory law, they provide practical guidance on implementing the requirements of hazardous substances legislation. Outside Germany, the relevant national regulations, technical standards and local safety requirements should be followed.
One practical example affecting container selection is the handling of flammable liquids and the prevention of electrostatic charging. According to TRGS 727, Section 4.5.5, the maximum permissible container volume for insulating containers in Zone 1 is 5 litres. During the open handling of flammable liquids, an explosive atmosphere may develop in the immediate vicinity of the container, which is generally classified as Zone 1. This limitation also applies to water-miscible solvents with high electrical conductivity. Whether these conditions exist in a particular laboratory must be determined as part of the site's risk assessment.
In practice, this may mean that a conductive container should be used instead of a standard insulating container. This assessment is closely linked to material selection and is discussed further in the following section covering HDPE, fluorinated HDPE and conductive HDPE-EL containers.
The applicable regulatory framework provides the basis for the technical and organisational assessment. Decisions regarding container material, capacity, electrical conductivity, storage, transport and the waste disposal concept should then be made on the basis of the site's risk assessment. Any assessment of explosion hazards and ignition risks must always be carried out for the specific application as part of this risk assessment. This article is intended as technical guidance only and does not replace legal, occupational safety or regulatory advice.
Practical conclusion: Safety requirements should never be considered in isolation. They are determined by the type of waste, container size, installation location, handling procedures, transport routes, storage conditions and the overall waste disposal process.
4. Material Selection: HDPE, PP, Fluorinated or Conductive HDPE (HDPE-EL)
Selecting the right container material is one of the key criteria when choosing a waste container for HPLC solvent waste. In practice, high-density polyethylene (HDPE) has become the standard material for many HPLC waste containers. HDPE is suitable for a wide range of typical HPLC waste mixtures, including waste containing water, methanol, acetonitrile, and comparable solvent mixtures.
What Is the Role of Polypropylene (PP)?
In addition to HDPE, containers made from polypropylene (PP) are occasionally used. Compared with HDPE, PP offers higher temperature resistance as well as greater stiffness and dimensional stability. Appropriately designed PP containers can also be autoclaved. This property is particularly relevant for applications where the containers need to be sterilised. Suitability for autoclaving should always be verified against the manufacturer's specifications and the applicable process parameters.
For most HPLC applications, however, HDPE has established itself as the standard material. It provides excellent impact resistance, is highly durable in everyday laboratory use, and is suitable for a broad range of HPLC solvent mixtures. PP can therefore be a useful alternative for specific applications but does not generally replace the proven standard solution of HDPE.
The suitability of any material should always be verified based on its chemical resistance and the specific operating conditions. Chemical compatibility should always be assessed with respect to the actual waste composition. Chemical resistance charts show how materials such as HDPE behave when exposed to specific chemicals, solvents, or solvent mixtures. They help determine whether a material is suitable for the intended application or whether a different container type should be considered.
For this assessment, the SCAT Chemical Resistance Guide can serve as a practical reference.

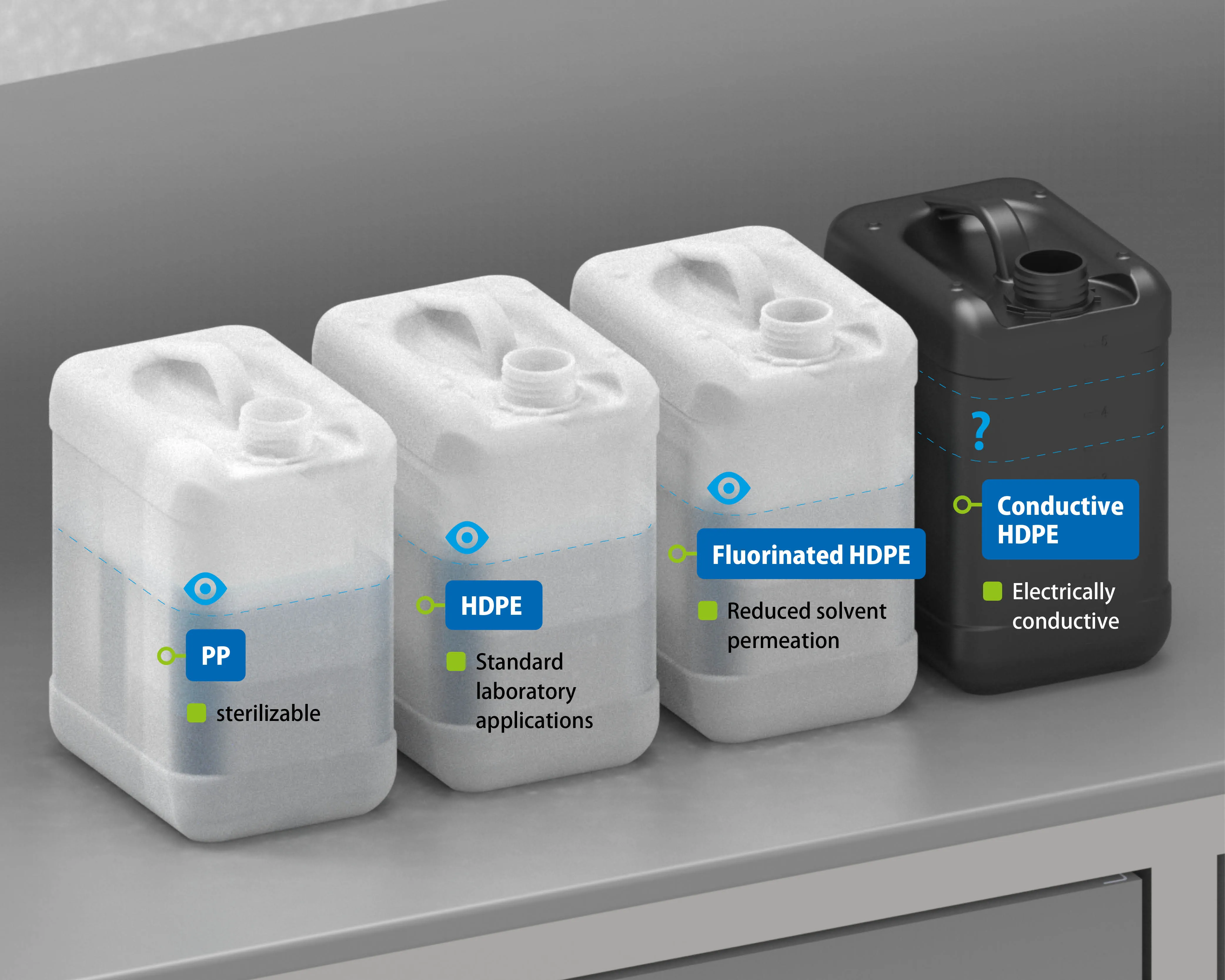

Figure 2: Container materials for HPLC solvent waste. Translucent containers allow visual monitoring of the fill level, while the black conductive HDPE-EL container requires mechanical or electronic fill level monitoring.
When is a fluorinated HDPE container the right choice?
For certain organic solvents or solvents with particularly critical permeation characteristics, fluorinated HDPE containers may be the preferred option. Fluorination improves the barrier properties of the plastic and can help reduce permeation, odour emissions and weight loss through the container wall. This becomes particularly important when waste is not collected only for a short period but remains in the container during extended collection or storage periods.
When should a conductive HDPE container (HDPE-EL) be used?
Conductive HDPE-EL containers are also available. These containers are electrically conductive and can, where required, be integrated into an earthing or equipotential bonding concept. Whether HDPE-EL is necessary or beneficial does not depend solely on the fact that flammable solvent waste is being collected. The decisive factors are the specific application, container size, handling procedures, installation location and the results of the risk assessment. The safety evaluation, particularly with regard to electrostatic charging and potentially explosive atmospheres, should be carried out in conjunction with the safety requirements described above.
Practical conclusion: HDPE is the standard solution for many HPLC laboratories. However, its chemical resistance must always be verified against the specific waste mixture. Fluorinated containers should be considered for solvents with critical permeation properties and for extended collection or storage periods. Conductive HDPE-EL containers should be considered where the safety assessment indicates the need for electrically conductive containers.
5. Selecting the container volume and geometry
What size should an HPLC waste container be?
The appropriate container size depends on the volume of waste generated and the desired replacement interval. Containers that are too small need to be changed frequently. Containers that are too large require more floor space, become heavier and may be less practical to handle.
In addition to volume, the container design is equally important. Depending on its geometry, a 5-litre container may be tall and narrow or wider and flatter. As a result, the required footprint, stability and ease of handling can vary considerably.
Space-saving containers with a slim design are particularly suitable where several waste disposal systems are positioned side by side or where installation space is limited. At the same time, stability should be assessed, especially when Safety Waste Caps, activated carbon filters, tubing or capillaries are connected. Suitable support bases or mounting brackets may be beneficial for such applications.
Wider standard containers require more space but often provide a larger footprint, making them more stable and easier to handle depending on the application. An overview of suitable containers and space-saving containers for laboratory waste is available in the SCAT product range.
Practical conclusion: When selecting the container geometry, the nominal volume is only one factor. The available installation space, container design, footprint, stability and ease of handling at the HPLC workstation are equally important.

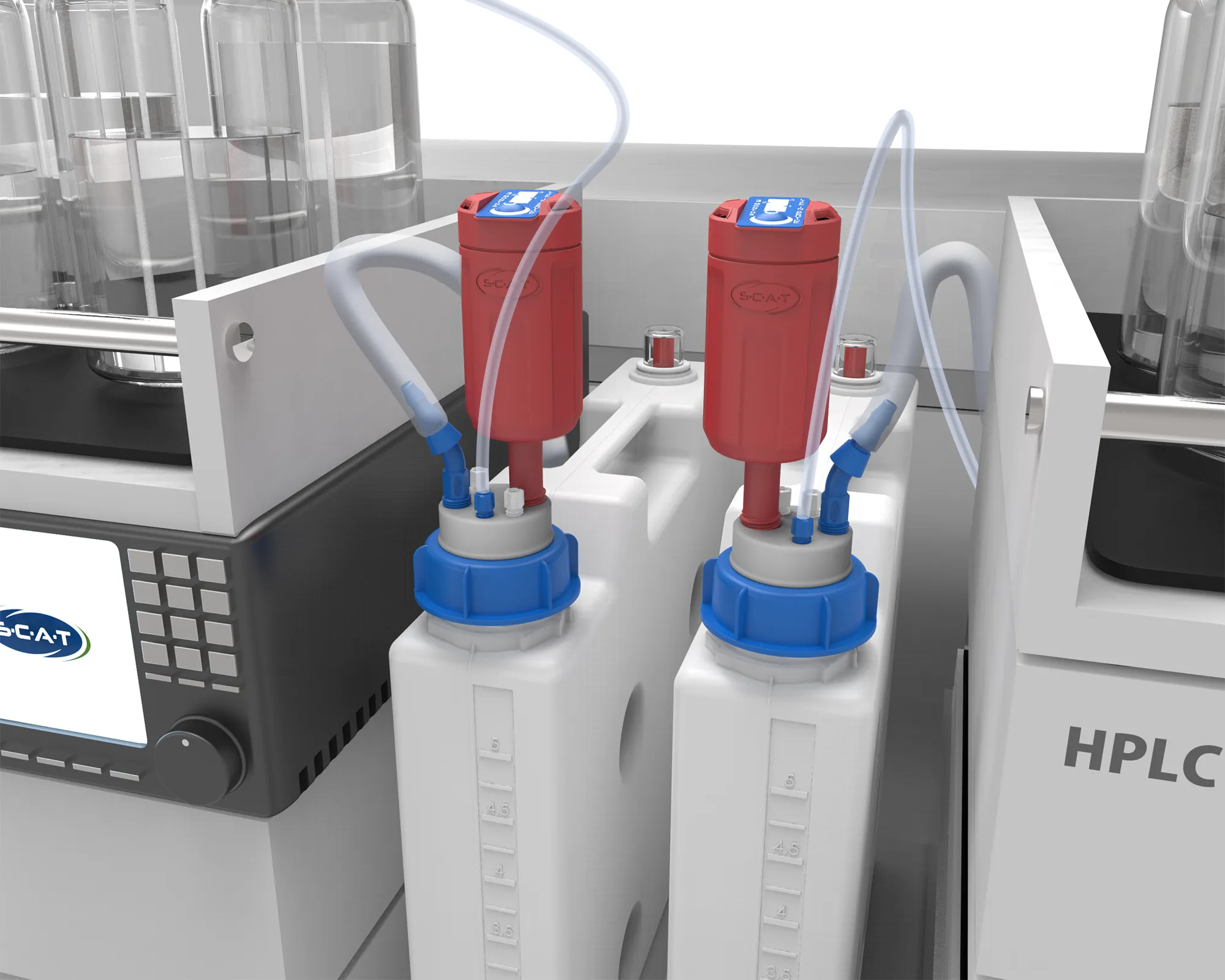

Figure 3: Select canister size and design to suit the parking space
6. Handling, ergonomics and internal transport
In addition to volume and container design, ease of handling is another key consideration. An HPLC waste container should not only match the expected waste volume but also be easy to replace, carry and transport safely within the facility.
In many HPLC laboratories, 5-litre and 10-litre containers have proven to be a practical choice, as they can generally be removed easily from the workstation and transported to the waste disposal area. Larger containers, such as 20-litre versions, offer greater collection capacity but can be significantly more demanding to handle once filled. Depending on the solvent mixture, container weight and fill level, the total weight can quickly exceed 20 kg.
When using larger containers, additional considerations should therefore be taken into account: Are suitable transport trolleys available? Are transport routes short and unobstructed? Can the container be gripped securely? Does it have one or two handles? Is transport by two people planned or required?
From an occupational safety perspective, it is not only the weight that matters. Other important factors include the frequency of container changes, body posture during lifting, handle design, transport distance and whether suitable mechanical aids can be used.
Practical conclusion: The larger and heavier a filled container becomes, the more important ergonomic handle design, safe removal from the HPLC workstation, short transport routes, suitable transport aids and clearly defined container replacement procedures become.
7. Configuring the Safety Waste Cap correctly: Threads, connections and expandability
Which Safety Waste Cap fits which container?
The Safety Waste Cap is more than just a lid for a waste container – it is a key component of a closed HPLC waste disposal system. It connects HPLC waste lines to the container, accommodates tubing or capillaries, allows the connection of an activated carbon filter and helps reduce solvent vapours in the laboratory. The SCAT Configurator is available to help you select the appropriate Safety Waste Caps for HPLC waste disposal.
The first important consideration is thread compatibility. The internal thread of the Safety Waste Cap must match the external thread of the container. Many HPLC waste containers are equipped with buttress threads, known as S threads, such as S 50, S 55 or S 60/61. Other thread types are also available, including GL threads and proprietary container threads. If the thread, pitch or seal is not compatible, the system may leak.
The container thread should therefore be identified accurately. A calliper can be used to measure the outside diameter, core diameter and thread pitch. In addition, the container thread identification guide can be helpful. In practice, however, identifying the correct thread is often prone to error. If there is any uncertainty, it is advisable to have a sample of the existing container or closure checked by SCAT to ensure that the correct Safety Waste Cap is selected.
In addition to the thread, the connection configuration is equally important. Before selecting a Safety Waste Cap, you should determine which lines need to be connected: HPLC capillaries, smooth tubing, corrugated tubing or a combination of these. The material, number and diameter of the lines should also be taken into account.
Typical HPLC capillary connections are designed for capillaries with outside diameters of 1.6 mm, 2.3 mm or 3.2 mm. Hose barbs are commonly used for larger tubing. Depending on the design, they can accommodate different tubing inner diameters. In every case, it is essential that the tubing, capillary, fitting and connection provide both a leak-tight seal and a secure mechanical connection.
The number of available connections should also not be underestimated. Even if only two HPLC waste lines are connected today, an additional module, another waste stream or a different tubing layout may be added later. Any unused ports must be securely sealed using suitable blanking plugs.
Modular solutions can be particularly beneficial where requirements may change over time. The Safety Waste Cap LISA is a good example: it is available with various thread sizes, allowing it to be matched to different container thread types.

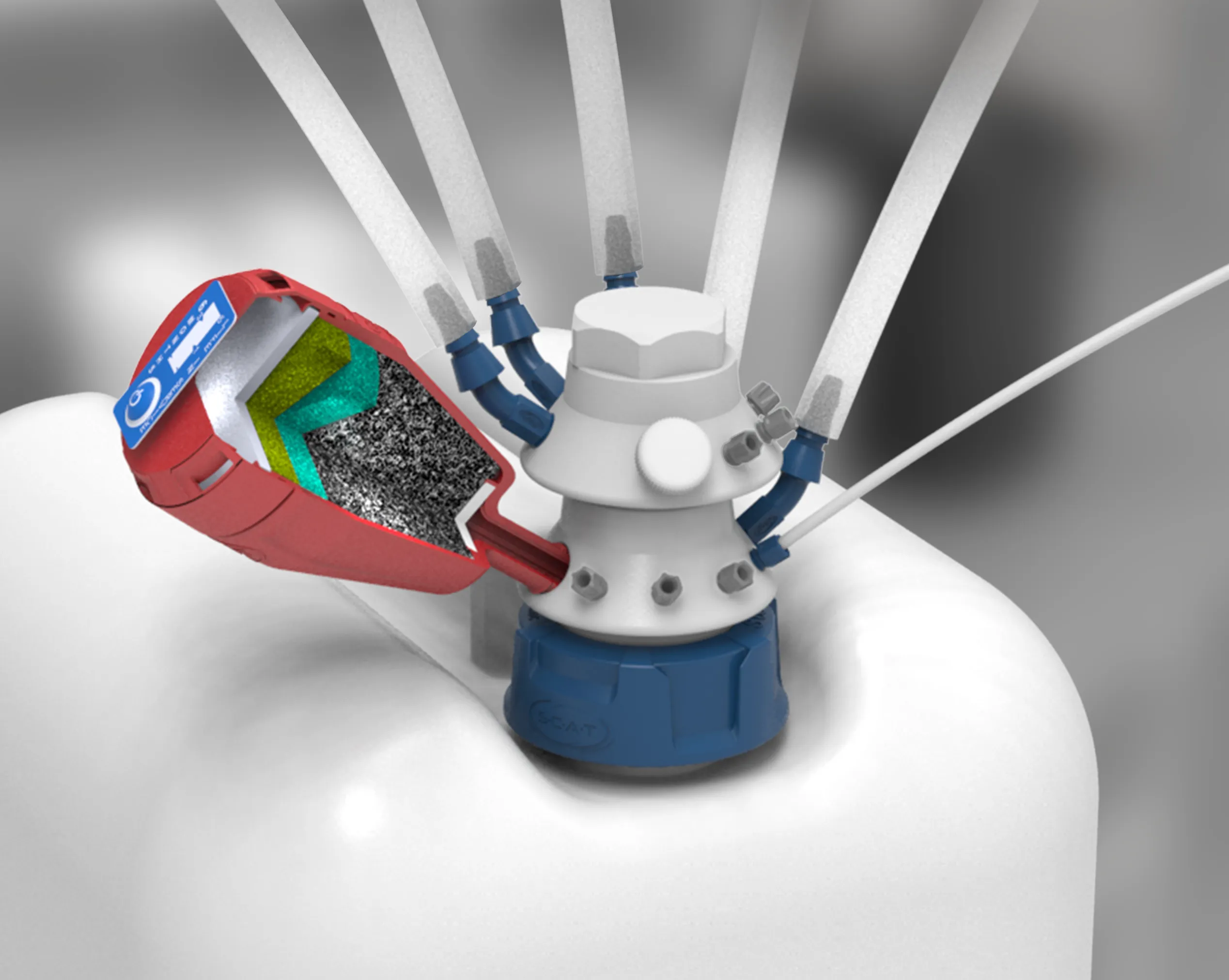

Figure 4: Safety Waste Cap LISA for flexible HPLC waste lines
At the same time, it remains highly adaptable. If the number of HPLC waste lines changes or different tubing or capillary connections are required at a later stage, LISA can be reconfigured or expanded accordingly. This reduces the risk of incorrect decisions during the initial configuration and makes the system particularly suitable for laboratories whose requirements evolve over time.
Practical conclusion: Selecting a Safety Waste Cap involves far more than choosing the correct thread. Thread compatibility, sealing, the number of connections, the type of connected lines, tubing and capillary diameters, blanking plugs, filter connection and future expandability are all essential considerations. The more thoroughly these aspects are defined in advance, the safer and more practical the HPLC waste disposal system will be in day-to-day laboratory operation.
8. Fill level monitoring and supervision
When is fill level monitoring useful for HPLC waste containers?
Reliable fill level monitoring for laboratory containers is a key safety factor in HPLC waste disposal. If a container becomes full without being noticed, it can no longer safely receive additional waste. Depending on the system design, this may result in a blockage in the waste line, backflow towards the HPLC system or overflow from the container.
Backflow is particularly critical when waste is continuously directed into the container via tubing or capillaries. Once the container is full, the waste can no longer drain freely. In the worst case, liquid backs up and may damage the HPLC system or connected components.
If backflow does not occur, overfilling presents a different risk: liquid may escape from the container, the Safety Waste Cap, connection points or other leaking areas. In the case of HPLC solvent waste, this may allow flammable, hazardous or odour-intensive liquids to enter the laboratory environment. For this reason, a waste container should not only be monitored but should also be placed in a suitable spill tray or collection tray. In such containment areas, capacitive leak sensors can additionally be used to detect leaked liquid in the tray at an early stage.

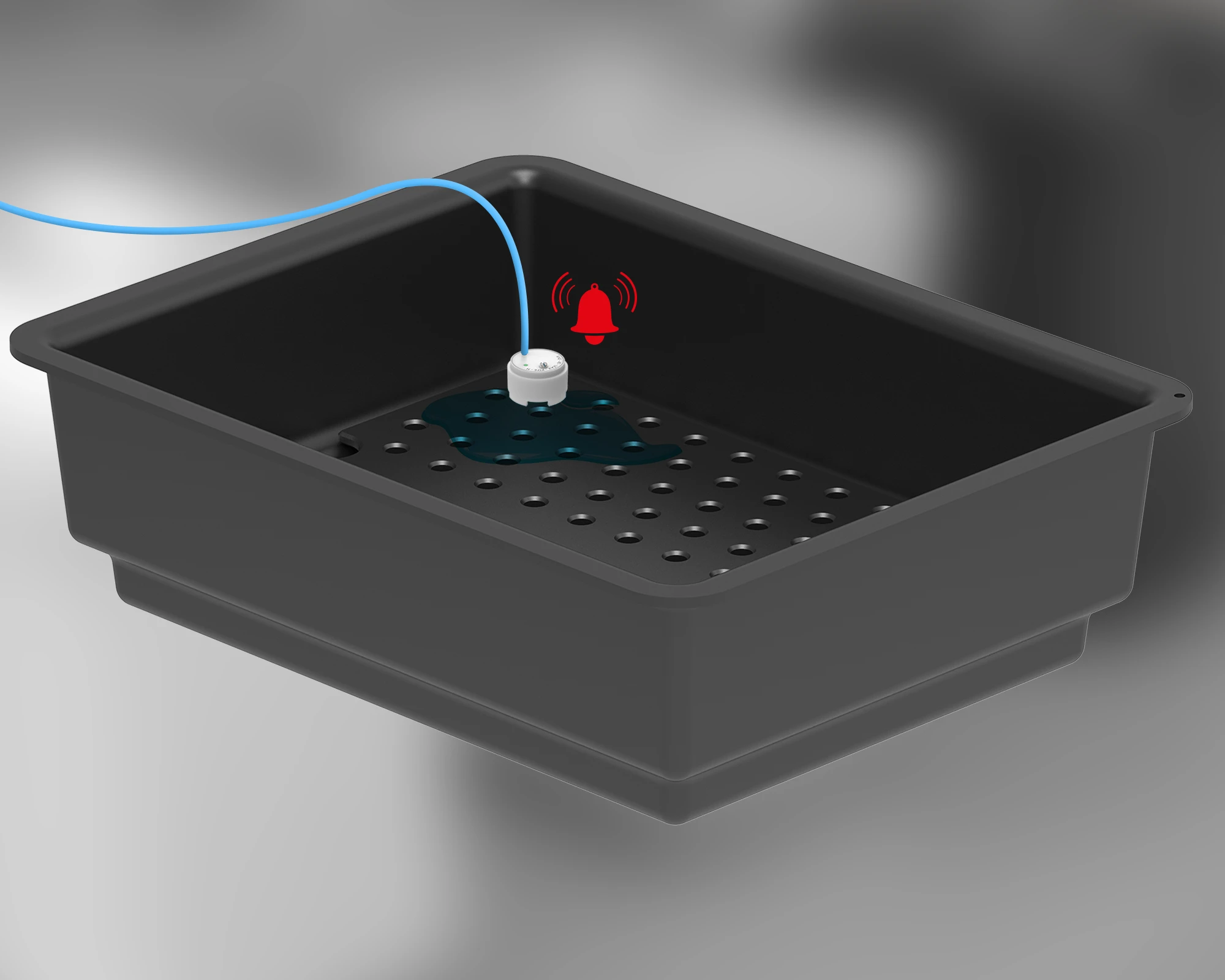

Figure 5: Leakage monitoring in the drip trayfilter.
The appropriate method of fill level monitoring depends on the container, its installation location and the required level of safety. With transparent or translucent HDPE containers, a simple visual inspection may be sufficient. However, this is often inadequate for containers located beneath laboratory benches, inside safety cabinets or in installations with several HPLC systems operating in parallel.
Fill level monitoring is particularly important for electrically conductive HDPE-EL containers. These containers are typically black because their electrical conductivity is achieved through conductive additives incorporated into the plastic. As a result, the fill level cannot be seen from the outside and must be monitored using a suitable fill level monitoring system.
Strictly speaking, fill level monitoring can be used for different purposes: monitoring the maximum fill level of a waste container to prevent overflow or backflow, or monitoring the empty level of a supply container to ensure timely refilling. For HPLC waste containers, overfill protection is generally the primary concern. However, empty-level monitoring systems are also important, for example for solvent supply containers or other storage vessels.
Capacitive disc sensors offer the advantage that they can be mounted on the outside of the container. They do not come into contact with the contents and can often be retrofitted with ease. Depending on their design and positioning, these sensors can be used either to monitor a critical fill level or to detect an empty container.
If an electronic signal box is used, warning signals can also be processed further depending on the system configuration. In addition to visual and audible alarms, external devices such as pumps or valves can, for example, be controlled. Shutdown functions or automatic changeover functions may also be integrated into more advanced system concepts. While this is a separate planning topic, it demonstrates that electronic fill level monitoring can provide much more than a simple local warning.
Practical conclusion: Fill level monitoring protects not only against overflow but also against backflow and potential consequential damage to the HPLC system. The less visible the fill level is and the longer a system operates unattended, the more important sensors, a signal box, a spill tray and, where appropriate, the further processing of warning signals become.
9. Check UN approval and transport suitability
When does an HPLC waste container require UN approval?
Many HPLC solvent wastes may be classified as dangerous goods, particularly if they contain flammable organic solvents or similar solvent mixtures. In such cases, not only the chemical resistance of the container is important, but also whether the container is suitable for transport and transfer into the subsequent waste disposal process.
UN approval indicates that a container has been type-tested as packaging for dangerous goods. The UN marking printed on the container provides important information about the packaging type, material, permitted packing group, maximum relative density of the contents, test pressure, year of manufacture and the approving authority.
Example: A code such as UN 3H1/Y1.9/150/… indicates, in simplified terms, a plastic container with a non-removable head, suitable for liquid dangerous goods within specified packing groups, up to a defined maximum relative density and test pressure.
It is important to note that UN approval does not automatically mean that every type of HPLC waste may be transported or handed over for disposal in that container. The decisive factor is whether the specific waste mixture complies with the container's UN approval. This includes, in particular, the dangerous goods class, packing group, density, vapour pressure, chemical resistance and the requirements of the waste disposal contractor.
Practical conclusion: UN approval confirms that a container has been tested for the transport of specific dangerous goods. It should always be verified against the actual waste mixture, the complete UN marking and the requirements of the waste disposal contractor for transport and handover.
Summary: Consider container selection as a complete system
Selecting the right HPLC waste container involves much more than choosing the correct material, volume or thread. The key is the interaction of all system components: the waste stream, container, installation location, Safety Waste Cap, activated carbon filter, tubing and capillary connections, fill level monitoring, spill tray, internal transport and overall waste disposal concept.
A well-designed system helps minimise common sources of error in everyday laboratory operation. These include leaking connections, incorrect thread types, unsuitable tubing connections, overfilling, backflow, unstable installation and unclear disposal procedures.
Future expansion should also be considered during the planning stage. If additional HPLC systems, new waste streams, sensors, signal boxes or further connections are added later, a modular system offers significantly greater flexibility than a solution designed only for current requirements.
SCAT supports this system-based approach with a coordinated range of containers, Safety Waste Caps, activated carbon filters, fittings, sensors and fill level monitoring solutions. This allows HPLC waste disposal systems to be planned in a practical way and expanded step by step whenever required.
Practical conclusion: The best container solution is not defined by a single product feature, but by a well-coordinated overall system consisting of the container, Safety Waste Cap, filter, connections, sensors, installation location, handling concept and waste disposal strategy.
Selection matrix: The key evaluation criteria for HPLC waste containers
Selecting an HPLC waste container depends on several factors. The following matrix helps avoid common mistakes and provides a systematic framework for evaluating the most important selection criteria.
Conclusion
Choosing the right HPLC waste container is a key element of safe and efficient laboratory operation. The decision should not be based on volume alone, but on the interaction of the waste profile, disposal concept, safety requirements, material, container geometry, handling, Safety Waste Cap, fill level monitoring, spill tray, UN approval and future expandability.
By evaluating these factors systematically, laboratories can reduce risks, minimise solvent vapour emissions, avoid incorrect purchasing decisions and simplify day-to-day operations. At the same time, the waste disposal system can be standardised more effectively and adapted to future requirements.
With its modular range of containers, Safety Waste Caps, activated carbon filters, fittings, sensors and fill level monitoring solutions, SCAT provides a practical, future-proof solution for HPLC waste disposal.
Do you need support in selecting the right HPLC waste container?
Whether you need advice on your waste profile, safety requirements, container material, Safety Waste Cap, fill level monitoring or your overall waste disposal concept, we are happy to assist you. If you have questions about your specific application or would like a tailored recommendation, our team is here to help.
Contact us for personalised advice.
Yours sincerely,
Peter Rebehn
Author
Peter Rebehn
Managing Director / Managing Partner
SCAT Europe GmbH
I am very happy about your questions, comments or suggestions!
Let’s get in contact:
A. Grundlagen der HPLC-Entsorgung
Für viele HPLC-Lösungsmittelabfälle eignen sich PE-HD-Kanister, da PE-HD gegenüber zahlreichen typischen HPLC-Abfallgemischen beständig ist. Dazu gehören zum Beispiel Wasser-/Lösemittelgemische, Methanol, Acetonitril oder entsprechende Mischungen. Die konkrete Eignung muss jedoch immer anhand des tatsächlichen Abfallgemisches geprüft werden. Entscheidend sind chemische Beständigkeit, Kanistervolumen, Gewinde, Entsorgungskonzept, Aufstellort und Sicherheitsanforderungen.
Die passende Kanistergröße hängt vom Abfallaufkommen und vom gewünschten Wechselrhythmus ab. In vielen HPLC-Laboren sind 5-Liter- oder 10-Liter-Kanister praktikabel, weil sie sich noch gut wechseln, tragen und innerbetrieblich transportieren lassen. Größere Kanister bieten mehr Sammelvolumen, können aber im gefüllten Zustand schwer und unhandlich werden. Deshalb sollten Abfallmenge pro Tag oder Woche, unbeaufsichtigte Laufzeiten, Transportwege und Ergonomie gemeinsam bewertet werden.
Ein 5-Liter-Kanister ist sinnvoll, wenn das Abfallaufkommen überschaubar ist, der Kanister regelmäßig gewechselt wird und das Gebinde nach der Befüllung direkt verschlossen, gekennzeichnet und als Abfallgebinde weitergegeben werden soll. Besonders bei begrenztem Stellplatz, kleineren HPLC-Systemen oder klar geregelten Entsorgungsintervallen kann ein 5-Liter-Kanister eine sehr praxisnahe Lösung sein.
Ein größerer Kanister kann sinnvoll sein, wenn hohe Abfallmengen entstehen, mehrere HPLC-Systeme angeschlossen sind oder längere unbeaufsichtigte Laufzeiten abgedeckt werden müssen. Dabei müssen jedoch Gewicht, Standfestigkeit, Transportfähigkeit, Füllstandskontrolle und Entsorgungskonzept berücksichtigt werden. Größere Gebinde sollten nur eingesetzt werden, wenn auch das Handling im Laboralltag sicher organisiert ist.
Das Abfallprofil bestimmt, welches Kanistermaterial, welches Volumen und welches Sicherheitskonzept geeignet sind. Entscheidend ist, welche Lösemittel und Zusatzstoffe im Abfall enthalten sind, wie flüchtig oder entzündbar das Gemisch ist und welche Menge pro Zeiteinheit anfällt. Ohne diese Informationen lässt sich ein HPLC-Entsorgungskanister nicht zuverlässig auswählen.
Vor der Kanisterauswahl sollte geklärt werden, was mit dem befüllten Kanister passiert. Wird der Kanister als vollständiges Abfallgebinde abgegeben oder wird der Inhalt intern in ein Sammelgebinde umgefüllt? Davon hängen Kanistertyp, Material, Wirtschaftlichkeit, Transportwege, Kennzeichnung, Zwischenlagerung und Sicherheitsanforderungen ab.
B. Lösemittel und Materialauswahl
Die Eignung eines PE-HD-Kanisters für methanolhaltige HPLC-Abfälle hängt vom konkreten Abfallgemisch und den Einsatzbedingungen ab. Für viele Anwendungen werden PE-HD-Kanister eingesetzt. Die chemische Beständigkeit sollte jedoch immer anhand geeigneter Beständigkeitstabellen geprüft werden. Zusätzlich sind Lagerdauer, Temperatur und Sicherheitsanforderungen zu berücksichtigen.
Acetonitril gehört zu den am häufigsten verwendeten HPLC-Lösemitteln. Ob ein PE-HD-Kanister geeignet ist, sollte anhand der chemischen Beständigkeit und der vorgesehenen Lager- oder Sammeldauer bewertet werden. Insbesondere bei längeren Standzeiten können Permeation und Geruchsemissionen zusätzliche Auswahlkriterien sein.
Ein fluorierter PE-HD-Kanister ist sinnvoll, wenn permeationskritische Lösungsmittel gesammelt oder länger gelagert werden. Die Fluorierung verbessert die Barriereeigenschaften des Kunststoffs und kann dazu beitragen, Permeation, Geruchsemissionen oder Gewichtsverluste über die Kanisterwand zu reduzieren. Ob ein fluorierter Kanister erforderlich ist, hängt vom konkreten Lösungsmittelgemisch und der Lagerdauer ab.
Ein PE-HD-EL-Kanister sollte geprüft werden, wenn elektrostatische Aufladung sicherheitstechnisch relevant sein kann. Das betrifft insbesondere Anwendungen mit brennbaren Flüssigkeiten, bestimmten Aufstellorten, größeren Gebinden oder Anforderungen aus dem Explosionsschutz. Ob ein ableitfähiger Kanister erforderlich ist, ergibt sich aus der betrieblichen Gefährdungsbeurteilung.
PE-HD-EL-Kanister sind häufig schwarz, weil die elektrische Ableitfähigkeit durch leitfähige Additive im Kunststoff erreicht wird. Dadurch sind Füllstände von außen in der Regel nicht sichtbar. Daher sollte eine geeignete Füllstandskontrolle vorgesehen werden. Besonders bei HPLC-Entsorgungskanistern ist das wichtig, um Überfüllung, Rückstau oder Leckagen zu vermeiden.
C. Geschlossene HPLC-Entsorgungssysteme
Ja. Mehrere HPLC-Systeme können an einen gemeinsamen Entsorgungskanister angeschlossen werden, sofern die Safety Waste Cap ausreichend Anschlüsse bietet und Kanistervolumen, Füllstandskontrolle sowie das gesamte Entsorgungskonzept entsprechend ausgelegt sind.
Ein geschlossenes HPLC-Entsorgungssystem kann dazu beitragen, die Freisetzung von Lösungsmitteldämpfen zu reduzieren, die Arbeitssicherheit zu verbessern und den Umgang mit HPLC-Abfällen komfortabler zu gestalten. Außerdem lassen sich Anschlüsse, Aktivkohlefilter und Füllstandskontrollen gezielt in das Gesamtsystem integrieren.
D. Füllstandskontrolle, Rückstau und Leckage
Eine Füllstandskontrolle ist besonders wichtig, wenn der Kanister nicht gut sichtbar ist, unter dem Labortisch oder im Sicherheitsschrank steht, mehrere HPLC-Systeme angeschlossen sind oder das System unbeaufsichtigt läuft. Sie hilft, Überfüllung, Rückstau in Abfallleitungen und mögliche Schäden an der HPLC-Anlage zu vermeiden.
Möglich sind einfache Sichtkontrollen, mechanische Schwimmerlösungen oder elektronische Sensoren. Kapazitive Sensoren können häufig außen am Kanister angebracht werden und kommen nicht mit dem Medium in Kontakt. In Kombination mit einer Signalbox sind optische und akustische Warnungen möglich.
Bei schwarzen PE-HD-EL-Kanistern, verdeckter Aufstellung oder unbeaufsichtigtem Betrieb kann eine reine Sichtkontrolle unzureichend sein. Mechanische oder elektronische Systeme erhöhen in diesen Fällen die Betriebssicherheit.
Wenn ein Kanister voll ist, kann der Abfall nicht mehr frei ablaufen. Bei kontinuierlichem Zulauf über Schläuche oder Kapillaren kann sich Flüssigkeit in der Abfallleitung zurückstauen. Im ungünstigen Fall kann das zu Rücklauf in Richtung HPLC-Anlage oder zu Schäden an angeschlossenen Komponenten führen.
Eine Auffangwanne oder Sammelwanne kann Flüssigkeit aufnehmen, wenn es zu Überfüllung, Undichtigkeiten oder Leckagen kommt. Das reduziert das Risiko, dass entzündbare, gesundheitsschädliche oder geruchsintensive Lösungsmittelabfälle in den Laborbereich gelangen.
E. Safety Waste Caps, Gewinde und Anschlüsse
Die passende Safety Waste Cap muss zum Gewinde des Kanisters passen. Viele HPLC-Entsorgungskanister besitzen S-Gewinde, zum Beispiel S 50, S 55 oder S 60/61. Neben dem Gewinde sind auch Dichtung, Anschlussanzahl, Schlauch- und Kapillardurchmesser, Blindstopfen, Filteranschluss und spätere Erweiterbarkeit entscheidend.
Wenn das Gewinde der Safety Waste Cap nicht zum Kanister passt, kann das System undicht werden. Dadurch können Lösungsmitteldämpfe austreten oder Flüssigkeit an Anschlüssen austreten.
Ein nicht passendes Gewinde kann zu Undichtigkeiten, Dampfemissionen und Problemen bei der Montage führen. Deshalb sollten Gewindegröße, Gewindetyp und Dichtung vor der Auswahl eindeutig bestimmt werden.
Typische HPLC-Kapillaren besitzen Außendurchmesser von 1,6 mm, 2,3 mm oder 3,2 mm. Für größere Schläuche können Schlaucholiven erforderlich sein. Entscheidend ist, dass alle Komponenten dicht und mechanisch sicher zusammenpassen.
Ein Aktivkohlefilter kann dazu beitragen, Lösungsmitteldämpfe zurückzuhalten und die Belastung der Laborluft zu reduzieren. Er ist daher ein wichtiger Bestandteil vieler geschlossener HPLC-Entsorgungssysteme.
Ein pauschales Wechselintervall lässt sich ohne konkrete Anwendung und Lösemittelbelastung nicht seriös festlegen. Das Wechselintervall hängt von Art und Menge der anfallenden Lösungsmitteldämpfe, der Nutzungsdauer und den Einsatzbedingungen ab. Herstellerangaben und betriebliche Vorgaben sollten dabei berücksichtigt werden.
F. UN-Zulassung, Gefahrgut und Transport
Eine UN-Zulassung ist relevant, wenn der befüllte Kanister als Gefahrgut transportiert oder in einen entsprechenden Entsorgungsprozess übergeben wird. Ob eine UN-Zulassung erforderlich ist, hängt vom konkreten Abfallgemisch, dem Transportweg und den Vorgaben des Entsorgers ab.
Die UN-Kennzeichnung beschreibt, dass ein Kanister als Gefahrgutverpackung bauartgeprüft wurde. Sie enthält Angaben zur Verpackungsart, zum Material, zur Verpackungsgruppe, zur maximalen Dichte, zum Prüfdruck und weiteren Zulassungsinformationen.
Nein. Entscheidend ist, ob das konkrete Abfallgemisch zur UN-Kennzeichnung des Kanisters passt. Zu prüfen sind unter anderem Gefahrgutklasse, Verpackungsgruppe, Dichte, Dampfdruck und chemische Beständigkeit.
G. Stellplatz, Handling und Praxis
Ein Platzsparkanister eignet sich besonders bei begrenztem Stellplatz oder wenn mehrere Entsorgungssysteme nebeneinander betrieben werden. Die schmale Bauform spart Platz, erfordert aber eine sorgfältige Prüfung der Standfestigkeit.
Der Kanister muss auch mit montierter Safety Waste Cap, angeschlossenen Leitungen und Aktivkohlefilter sicher stehen. Gegebenenfalls sollten Standfüße oder Halterungen eingesetzt werden.
20-Liter-Kanister bieten zwar viel Sammelvolumen, können aber im gefüllten Zustand schwer und ergonomisch ungünstig sein. Transport, Wechsel und Handling müssen daher besonders berücksichtigt werden.
Das hängt vom Kanistertyp, dem Entsorgungskonzept und den betrieblichen Vorgaben ab. Bei hochwertigen Spezialkanistern kann eine Wiederverwendung im Rahmen eines geeigneten Konzepts sinnvoll sein, sofern Materialzustand, Kontamination, Reinigung, Kennzeichnung und betriebliche Vorgaben dies zulassen.
Das Wechselintervall hängt von Abfallmenge, Kanistervolumen und Betriebsweise der HPLC-Anlage ab. Besonders bei unbeaufsichtigtem Betrieb ist ein klar definierter Wechselrhythmus wichtig.
Bei Nacht- oder Wochenendbetrieb müssen Abfallmenge, Kanistervolumen, Wechselrhythmus und Füllstandskontrolle sorgfältig aufeinander abgestimmt sein, um Überfüllung, Rückstau und Leckagen zu vermeiden.
H. Gesamtsystem, typische Fehler und Gefährdungsbeurteilung
Ein HPLC-Entsorgungskanister funktioniert nicht isoliert. Entscheidend ist das Zusammenspiel aus Kanister, Safety Waste Cap, Aktivkohlefilter, Fittings, Schläuchen, Kapillaren, Füllstandskontrolle, Auffangwanne, Aufstellort, Handling und Entsorgungskonzept.
Typische Fehler sind falsch eingeschätzte Abfallmengen, ungeprüfte Materialbeständigkeit, falsche Gewinde, fehlende Füllstandskontrollen, zu schwere Gebinde oder ungeklärte Entsorgungsprozesse.
Die Gefährdungsbeurteilung bildet die Grundlage für die Bewertung von Material, Volumen, Ableitfähigkeit, Lagerung, Transport und Entsorgungskonzept. Sie ist entscheidend für die sicherheitstechnische Bewertung der Anwendung.
Zunächst sollten Abfallprofil, Abfallmenge, Entsorgungsrhythmus, Aufstellort, Sicherheitsanforderungen und Entsorgungskonzept geklärt werden. Danach lassen sich Material, Volumen, Gewinde, Safety Waste Cap, Filter, Füllstandskontrolle und Zubehör passend auswählen. Bei komplexeren Anwendungen empfiehlt sich eine individuelle Beratung.
Skip product gallery
Matching Products
Act. carbon exhaust filter S 3M, dis, 4
€212.14*
Product no.: 490335
Activated carbon exhaust filter S, GL14
- economy package
- with splash guard and change indicator
- service life 3 months,
- quantity = 4 pieces
Act. carbon exhaust filter M, 6M, lab, 2
€171.54*
Product no.: 490336
Activated carbon exhaust filter M, GL14
- economy package
- with splash guard and change indicator
- service life 6 months
- quantity = 2 pieces
Act. carbon exhaust filter L, 12M, dis 1
€130.94*
Product no.: 407986
Activated carbon exhaust filter L, GL14
- with splash guard and change indicator
- service life 12 months
HPLC disposal set, GL45, 5 l
€151.24*
Product no.: 307307
HPLC disposal set, GL45, 5 l
- 1 x Safety Waste Cap, GL45
- 2 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G
- 2 x PFA-Fitting 3.2 mm OD, UNF 1/4“ 28G
- 1 x PP tube connector, 5.0 - 11.5mm ID, NPT 1/8"
- 1 x connection for exhaust filter, GL14
- 1 x canister, 5L, PE-HD
- 1 x exhaust filter M, GL14, with splash guard and change indicator
HPLC disposal set, S60/61, 20 l
€176.61*
Product no.: 307370
HPLC disposal set, S60/61, 20 l
- 1 x Safety Waste Cap, S60/61
- 2 x PFA fitting 2.3 mm OD, UNF 1/4“ 28G
- 2 x PFA fitting 3.2 mm OD, UNF 1/4“ 28G
- 1 x PP tube connector, 5.0 - 11.5mm ID, NPT 1/8"
- 1 x connection for exhaust filter, GL14
- 1 x canister, S60/61, 20L, PE-HD
- 1 x exhaust filter M, GL14, with splash guard and change indicator
